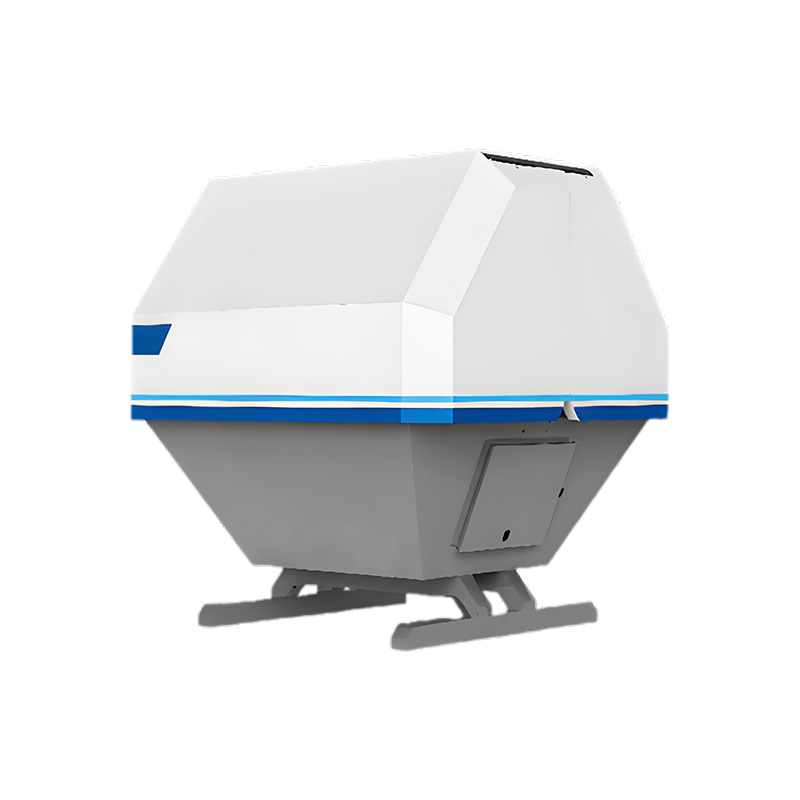

Dimensions
| With cover open: 760mm × 760mm × 420mm (L×W×H)
|
|---|
| Maximum input power | 600W
|
|---|
| Air conditioning | Compressor-type AC, 300W power
|
|---|
| Battery | Built-in backup battery (12V 24AH) with actual runtime over 24 hours, ensuring normal communication and 1 takeoff/landing cycle within 24 hours
|
|---|
| Sensors | Integrated system sensors (no external pole installation required) supporting wind speed, rainfall, ambient temperature, internal temperature, and internal humidity—with separate temperature/humidity measurement for upper and lower cabin
|
|---|
| Lightning | Built-in leakage protection for external power supply; dual-level lightning protection (65kA for power ports, 5kA for electronic control components)
|
|---|
| Expansion capability | Open platform support with cloud-free API access
|
|---|
| Compatibility | Works with DJI M2E/M2T/M3E/M3T/M4E/M4T, Autel EVO 4Max, and other models
|
|---|
| Mounting interface | Native interface for lamp posts or smart lamp posts
|
|---|
| Mounting bracket | Included adjustable bracket for level calibration
|
|---|
