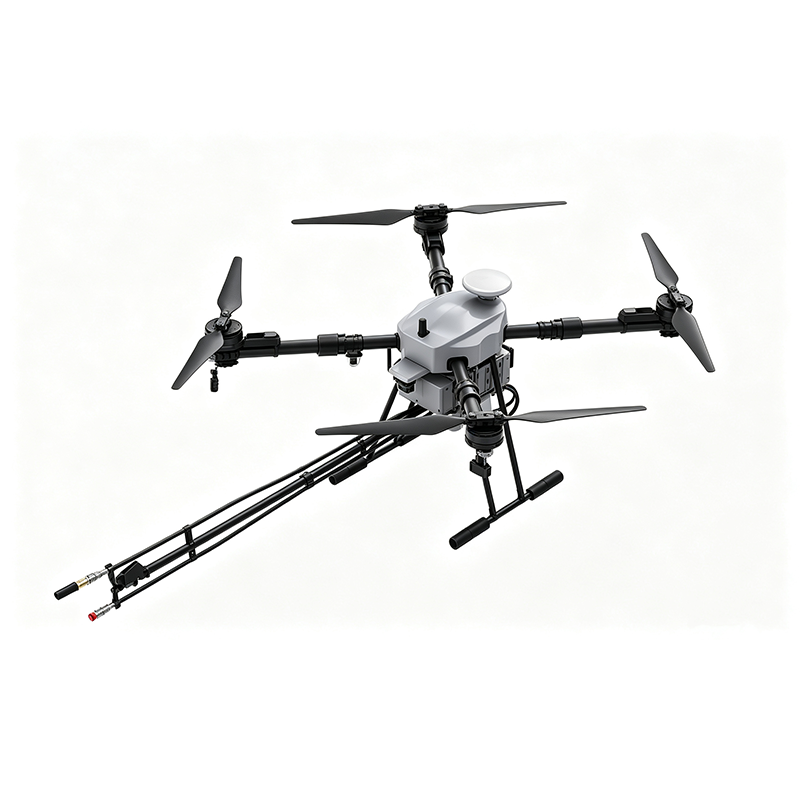

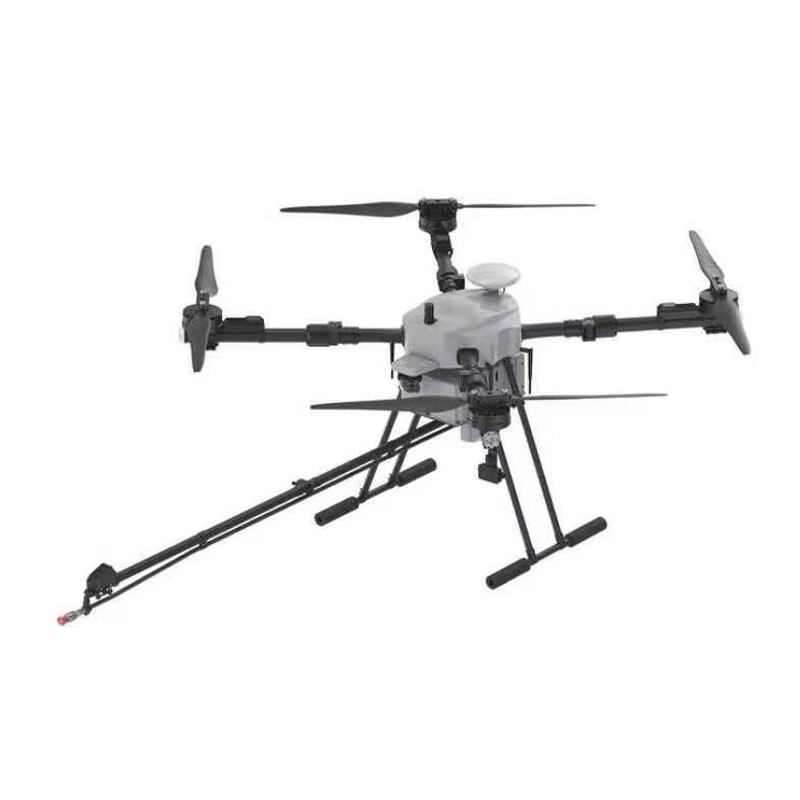

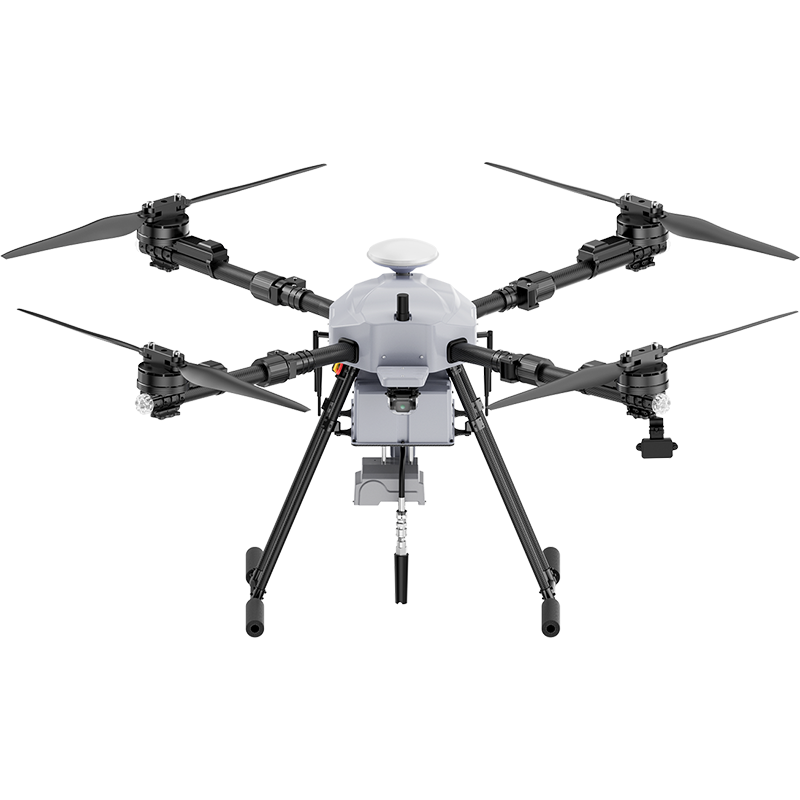

Product Description

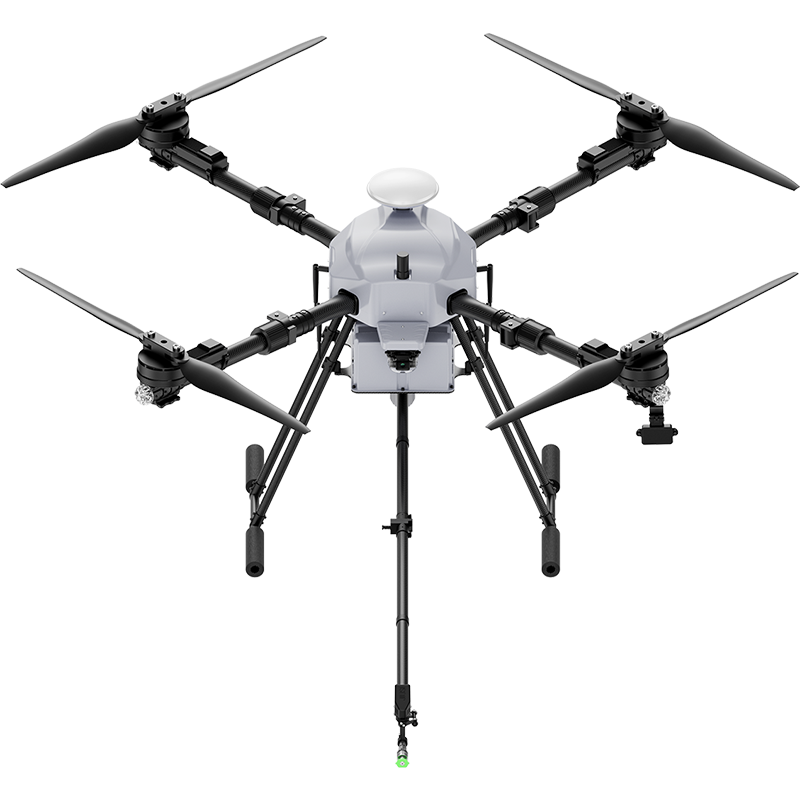

The CD15 Facade Cleaning Drone is an advanced aerial cleaning solution designed for high-rise buildings, glass curtain walls, exterior walls, windows, solar panels, industrial facilities, and commercial properties. Equipped with dual RTK centimeter-level positioning, intelligent flight control, and a continuous tethered water supply system, it delivers safe, stable, and efficient cleaning without scaffolding or rope access. The CD15 helps reduce labor costs, improve operational safety, and increase cleaning productivity for building maintenance, facade washing, pressure washing, window cleaning, and industrial cleaning applications. It is an ideal drone cleaning solution for professional cleaning contractors and facility management companies worldwide.
Product Advantage
High-Flow Cleaning Performance
The CD15 delivers up to 15 L/min of water flow, enabling fast and efficient cleaning of building facades, glass curtain walls, solar panels, roofs, and industrial structures while reducing cleaning time and labor costs.
200 Bar Peak Pressure
Featuring 200 bar peak pressure and 100 bar stable working pressure, the CD15 provides powerful and reliable cleaning performance for building facade cleaning, glass cleaning, solar panel cleaning, roof cleaning, and industrial surface cleaning, ensuring efficient removal of stubborn contaminants.
100 m Operating Height
Designed for high-rise cleaning applications, the CD15 supports an operating height of up to 100 meters, making it suitable for commercial buildings, factories, warehouses, and large infrastructure projects.
Intelligent Flight Control System
Featuring intelligent flight control and autonomous operation, the CD15 provides stable flight, precise positioning, and efficient cleaning paths, helping operators complete tasks with greater accuracy and consistency.
Dual RTK & Failsafe Protection
Equipped with a dual RTK centimeter-level positioning system, the CD15 delivers highly accurate flight control and stable operation during close-range cleaning. Its intelligent failsafe protection system automatically hovers or performs a safe landing in the event of signal loss, ensuring maximum operational safety and equipment protection.
IP56 Protection Rating
With an IP56 waterproof rating, the CD15 is designed to operate reliably in demanding outdoor environments, providing dependable performance during routine building and industrial cleaning operations.
Technical Parameters
Basic Parameters | CD15 |
Folded Size | 700×650×730mm |
Expanded Size (Propeller Unfolding) | 1945×1945×730mm |

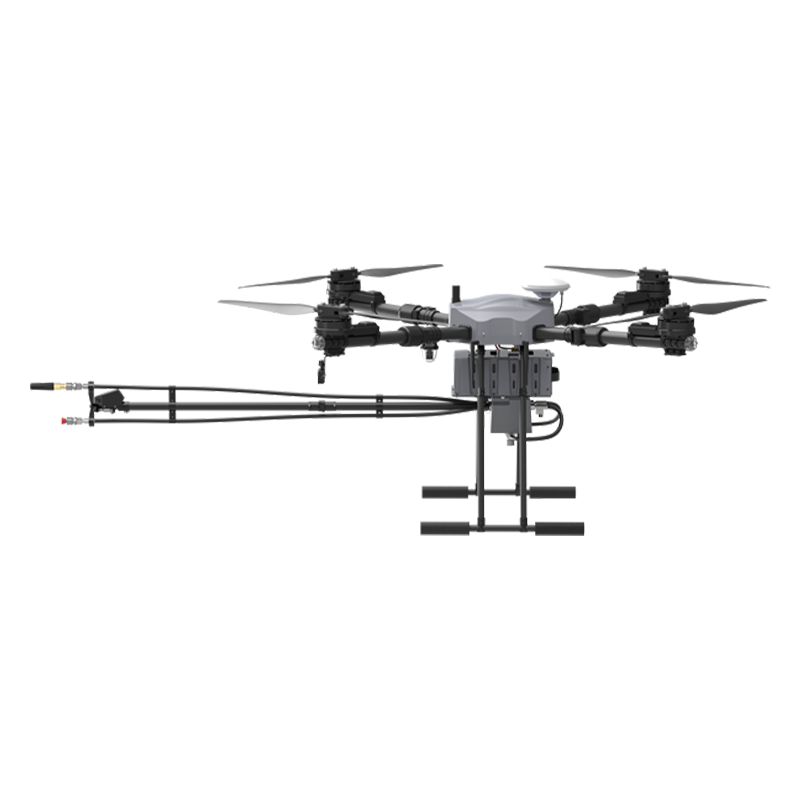

Spray Pipe Length | 1500mm |
Number of Rotors | 4 |
Working Temperature | -10 °C ~ 40 °C |
Max Wind Resistance (Operation) | 12 m/s |
Battery Capacity | 14S 41000mAh |
Maximum Takeoff Weight | ≤24.9 kg |
Spray & Cleaning Settings | |
Spray Flow Rate | 15 L/min |
Rated Water Pressure | 10 MPa |
Max Water Pressure | 20 MPa |
Standard Nozzle Angles | 0°/15°/25°/40° |
Light Cleaning Effciency | up to 1000 ㎡/h |
Deep Cleaning Effciency | up to 500 ㎡/h |
Nozzle Modes | Fixed nozzle / Oscillating nozzle |
Flight Parameters | |
Battery Capacity | 14S 41000mAh |
Max Flight Speed (Horizontal) | 15 m/s |
Positioning | Dual RTK |
Charging Time | 35-40min |
Obstacle Avoidance | Radar Intelligent |
Flight Time | 45minutes(Building Facades Cleaning), |

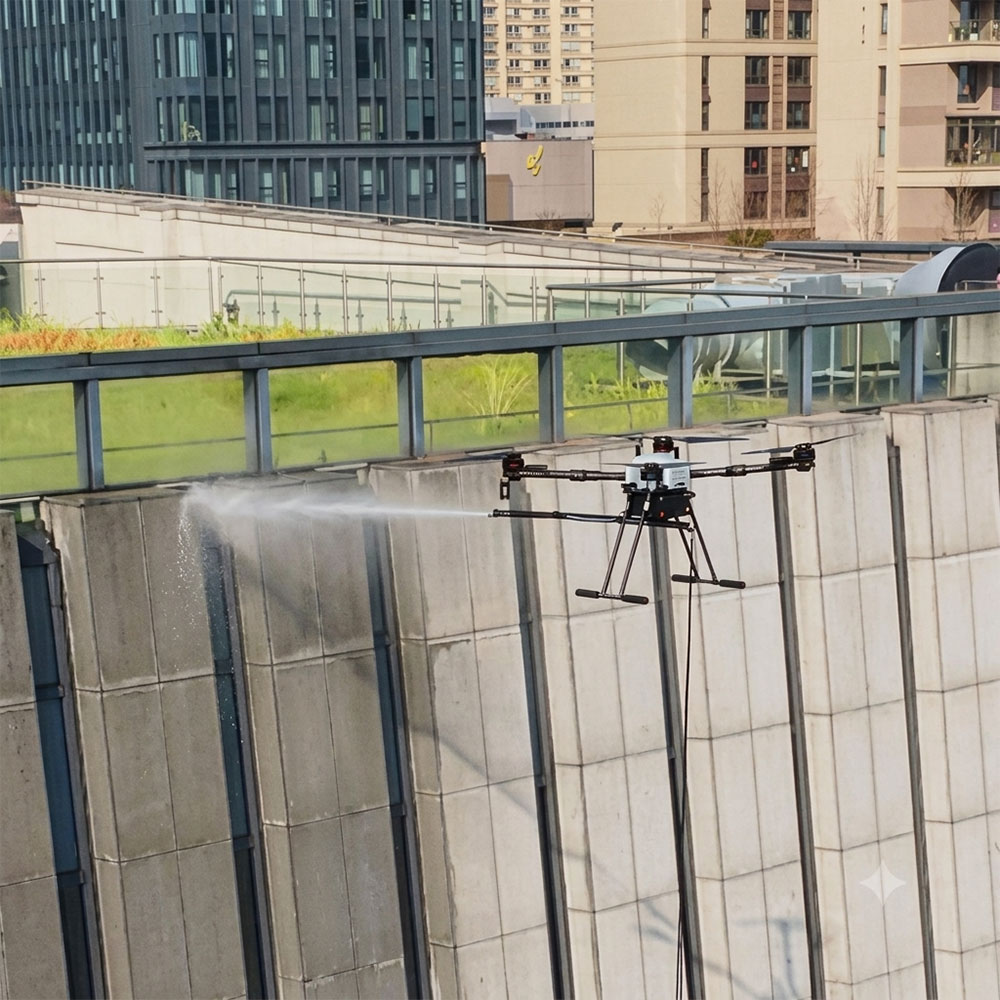

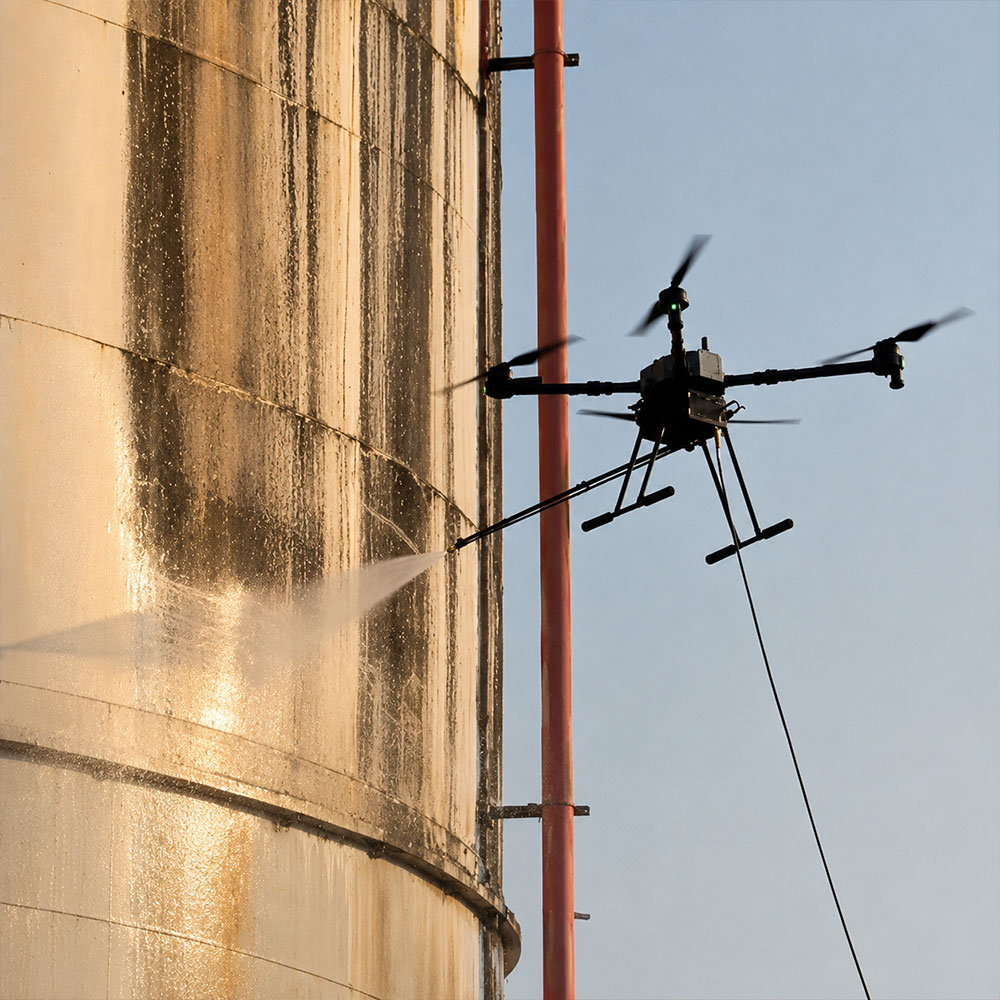

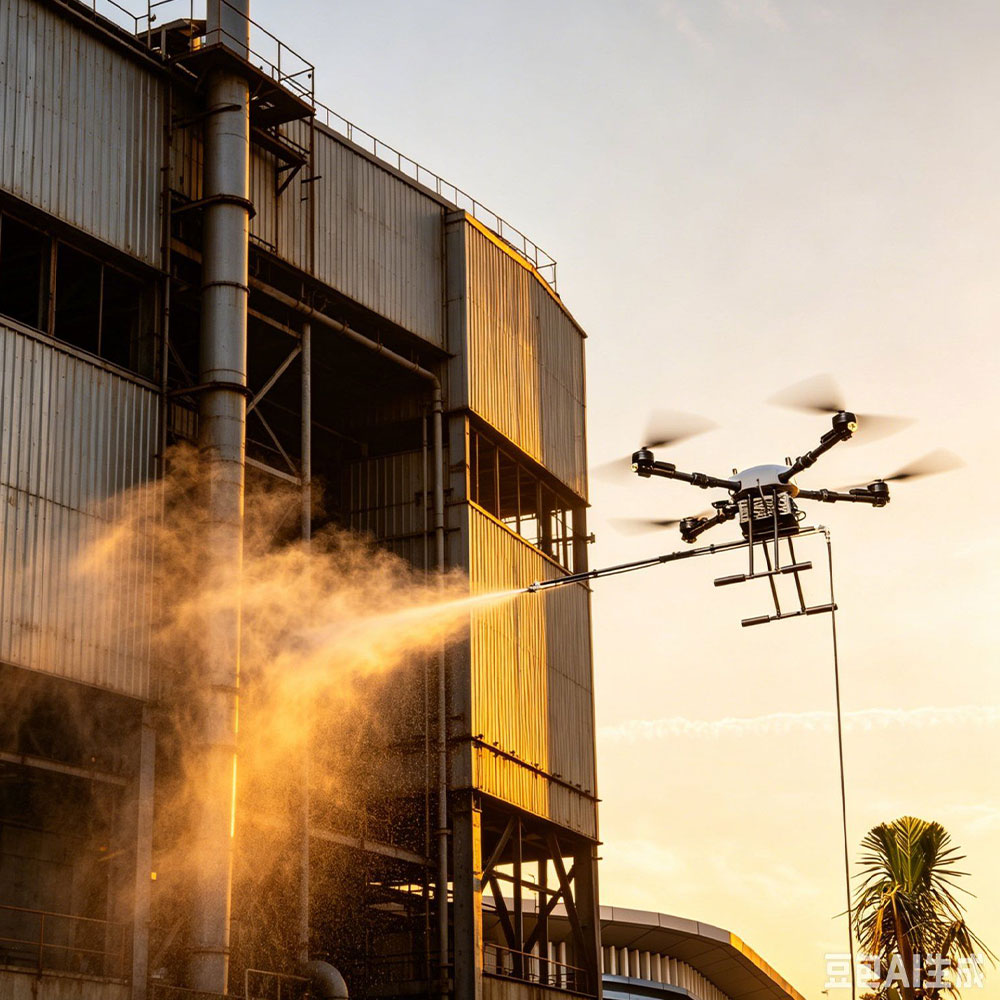

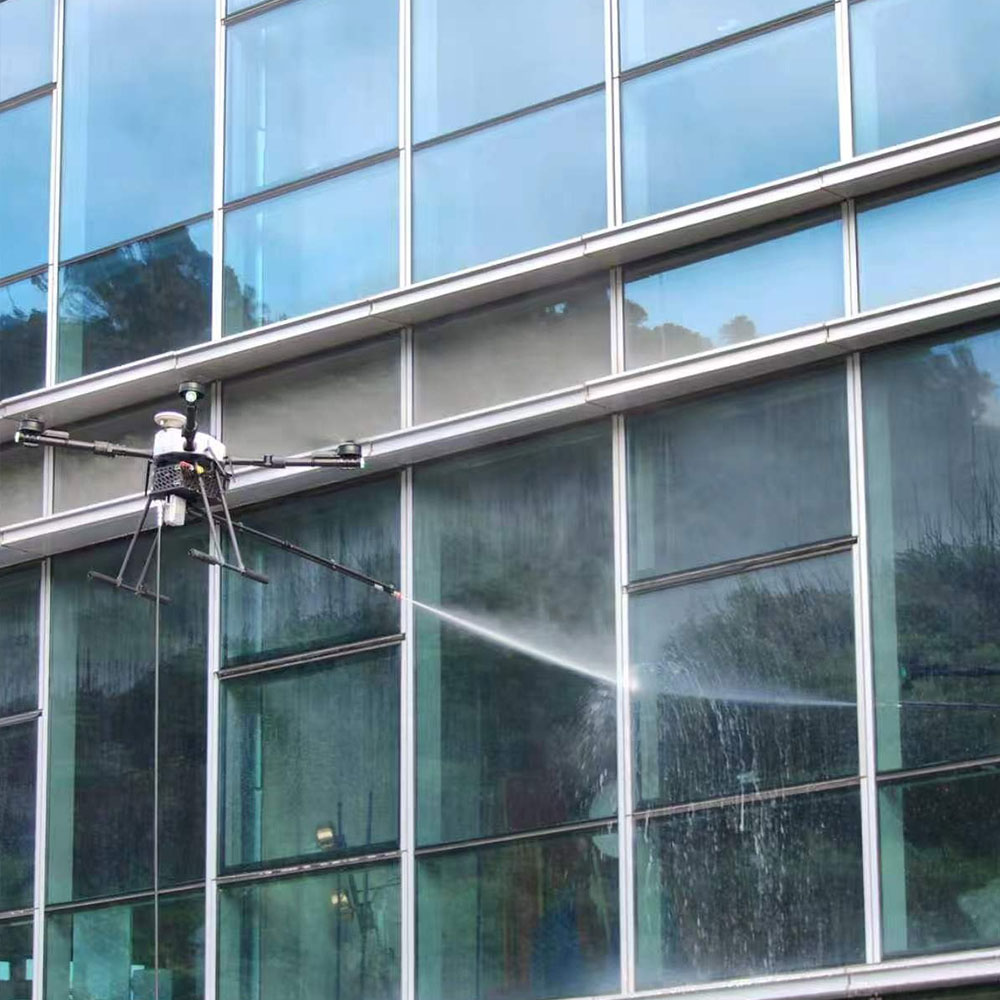

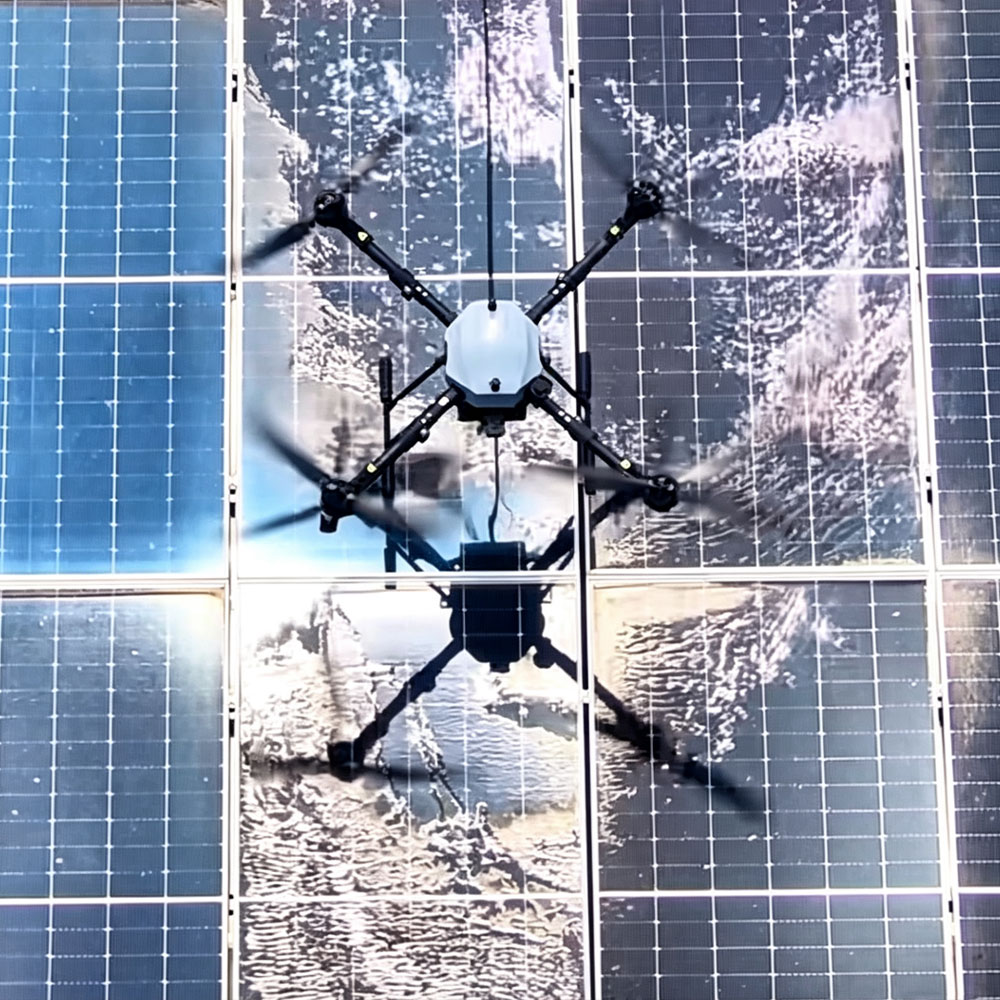

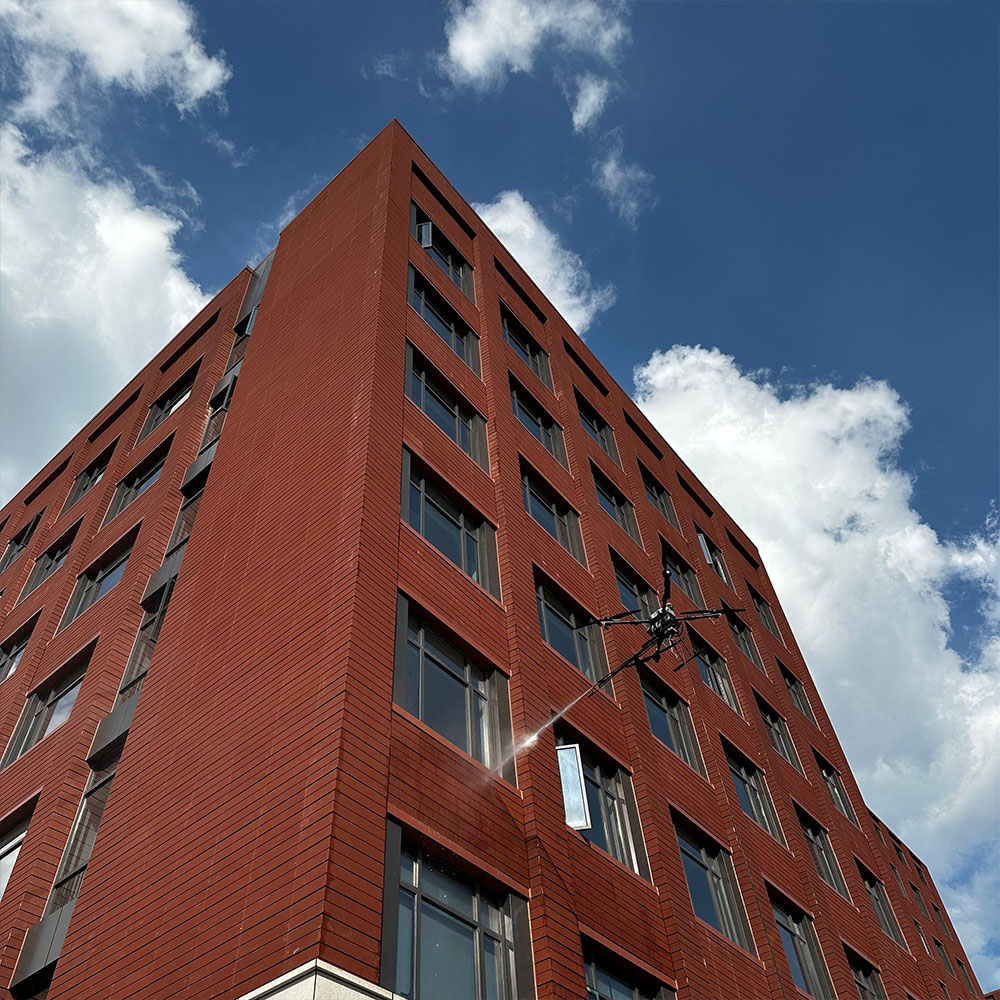

Application
