| Technical Parameters |

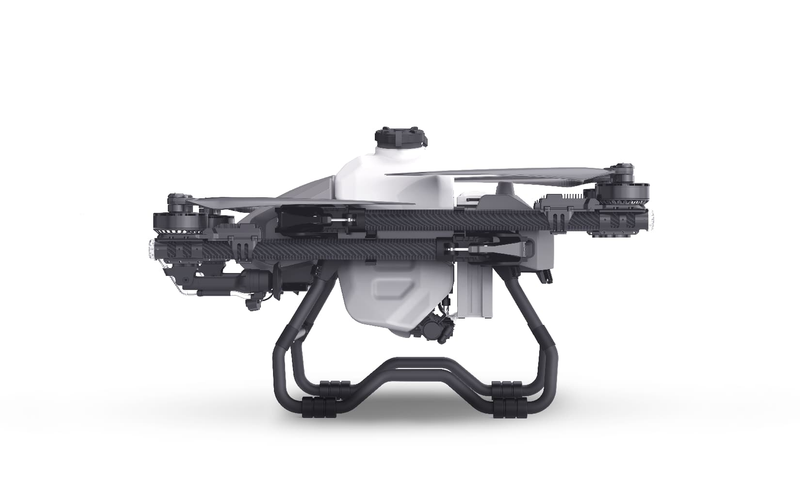

| Model | AH30 |
| Wheelbase | 2000 mm |
| Unfolded Dimensions | 1710 × 1453 × 700 mm |
| Folded Dimensions | 603 × 1120 × 700 mm |
| Total Weight | 30 kg (Battery Excluded) |
| Body Material | Carbon Fiber / Nylon Fiber / Aluminum Alloy |
| Storage Method | Transverse Arm Folding |
| Operating Temperature | -10℃ – 40℃ |
| Power System |
| Motor Model | X11 Plus |
| Power System Gross Weight | 2490 g |
| Propeller Size | 48 inch |
| Single Shaft Load | 15–18 kg |
| Supported Lithium Batteries | 12–14S LiPo |
| Spraying System |
| Tank Payload | 30 L |
| Spray Flow Rate | 12 L/min |
| Effective Spray Width | 5–8 m |
| Operation Efficiency | 60 Mu |
| Spray Nozzle | Centrifugal Nozzle × 2 |
| Tank Load | 30 L |
| Spray Flow Rate | 12 L/min |
| Spreading System |
| Spreading Hopper | 50 L |
| Spreading Mode | Centrifugal Disc Spreading |
| Effective Spreading Width | 3-10 m |
| Remote Controller |
| Dimensions | 190 × 152 × 94 mm |
| Display Screen | 5.5-inch High-Brightness Display |
| Battery Endurance | 6–20 Hours |
| Energy System |
| Smart Battery | 14S 30000 mAh |
| Hybrid Oil-Electric Charger | 14S 7200W |
| Battery Charger | 14S 72000 mAh |
| Flight Speed | 3 m/s |
| No-Load Flight Time | 28 min |
| Full-Load Flight Time | 7 min |
