Product Description

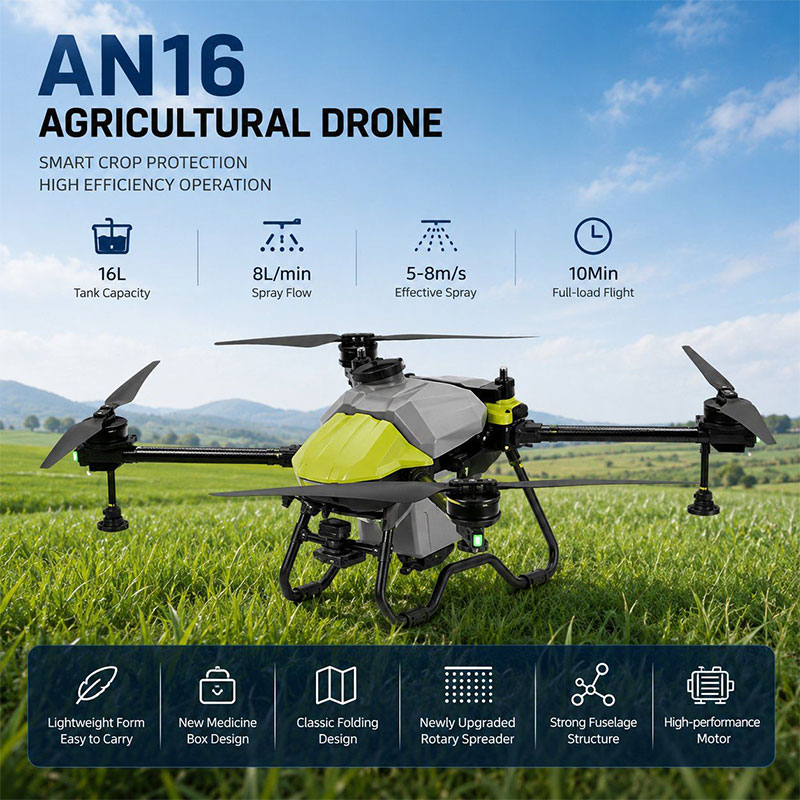

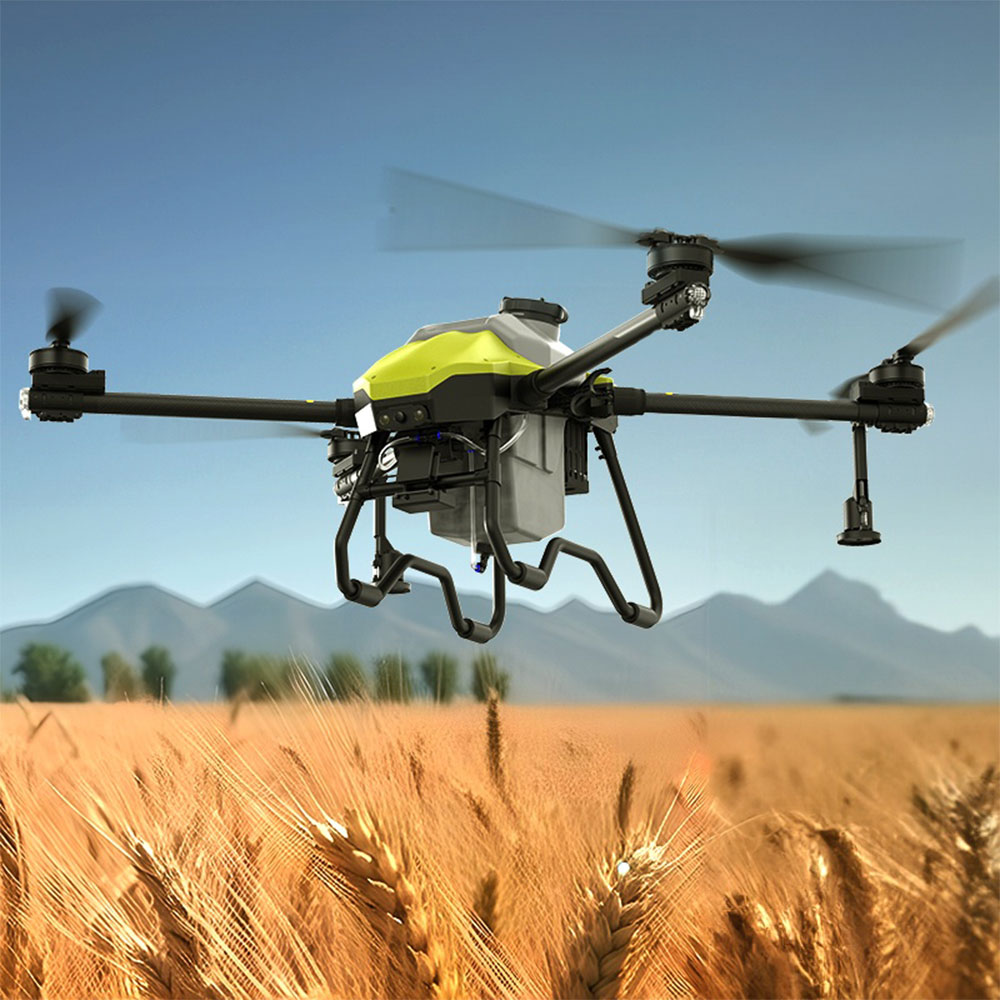

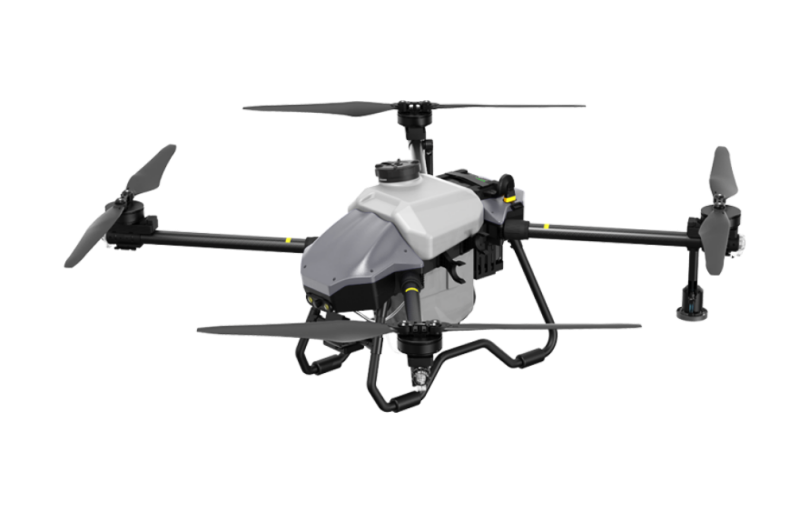

The AN16 Agricultural Drone is a crop spraying UAV designed for medium-sized farms and professional agricultural service providers. With a 16L tank capacity and a 10L operational payload, the AN16 balances maneuverability with per-sortie coverage for routine crop management. The aircraft features a dual-nozzle spraying system, intelligent flight control, and a 14S 18000 mAh battery, delivering consistent application across crops, orchards, and plantations. Its folding frame and 16 kg empty weight support transport between fields while maintaining a maximum takeoff weight of 38 kg. The AN16 serves commercial users who require a reliable, transportable spraying platform for regular field maintenance schedules.
The AN16 supports pesticide spraying, fertilizer application, and crop protection across farms, orchards, and agricultural service operations. Its compact folding design and manageable weight make it suitable for operators who move between multiple smaller fields. The aircraft works effectively on rice, wheat, vegetables, and orchard crops, and its aerial operation avoids the soil compaction and crop damage that can occur with ground-based spray equipment in wet or dense-field conditions. For enterprise customers running fleet operations across distributed client farms, the AN16 serves as a flexible unit that can be deployed alongside higher-capacity models for smaller or irregularly shaped fields.
Product Advantage
The AN16 carries a 10L operational load within its 16L tank, offering a practical balance between flight endurance and per-sortie coverage for medium-scale operations. The payload capacity supports regular spraying schedules for farms and plantations without requiring the larger battery and charging infrastructure associated with higher-capacity aircraft. The tank is compatible with liquid pesticides and liquid fertilizers for multi-purpose use throughout the growing season.
The AN16 is equipped with pressure and centrifugal nozzle options to accommodate different crop types and chemical viscosities. The system provides a spray flow of 4-8 L/min and an effective spray width of 3-5 m, with a pump pressure of up to 0.8 MPa. The optimized nozzle design supports consistent droplet distribution across rice, wheat, vegetables, and orchards, allowing operators to match the nozzle type to the target crop and application volume.
The AN16 integrates intelligent flight control with automatic route planning and mission execution. Operators define field boundaries and spraying parameters through the remote controller or companion app, and the aircraft completes the planned mission with reduced manual intervention. The system supports terrain following and obstacle awareness for operation in varied field conditions, including uneven ground and areas with scattered trees or structures.
Powered by a 58.8V (14S) system and a 14S 18000 mAh battery, the AN16 maintains stable flight at speeds of 3-8 m/s. Full-load flight time reaches 7-10 min, with no-load flight time of 20-25 min. The durable frame and multiple safety functions support consistent operation during daily spraying missions across different agricultural environments. The quick-release battery enables rotation between sets, and the 300-500 charging cycle rating gives business buyers a measurable battery replacement schedule for cost planning.
Technical Parameters
Technical Parameters | AN16 |
Developed dimension | 1140×1300×575 mm |
Folded size | 1010×610×575 mm |
Diagonal wheelbase | 1480mm |
Working voltage | 58.8V(14S) |
Weight | 16kg |
Load | 10L |
Flight speed | 3-8m/s |
Spray width | 3-5m |
Maximum takeoff weight | 38kg |
Sprinkler system | Pressure nozzle/Centrifugal nozzle |
Pump maximum pressure | 0.8 MPa |
Spray Flow | 4-8/min |
Flight time | No-load(20_25min) |
Operation efficiency | 8-10 min/mu |
Battery | 14S 18000 mAh |
Charging time | 15-30min |
Charging cycle | 300-500 times |
