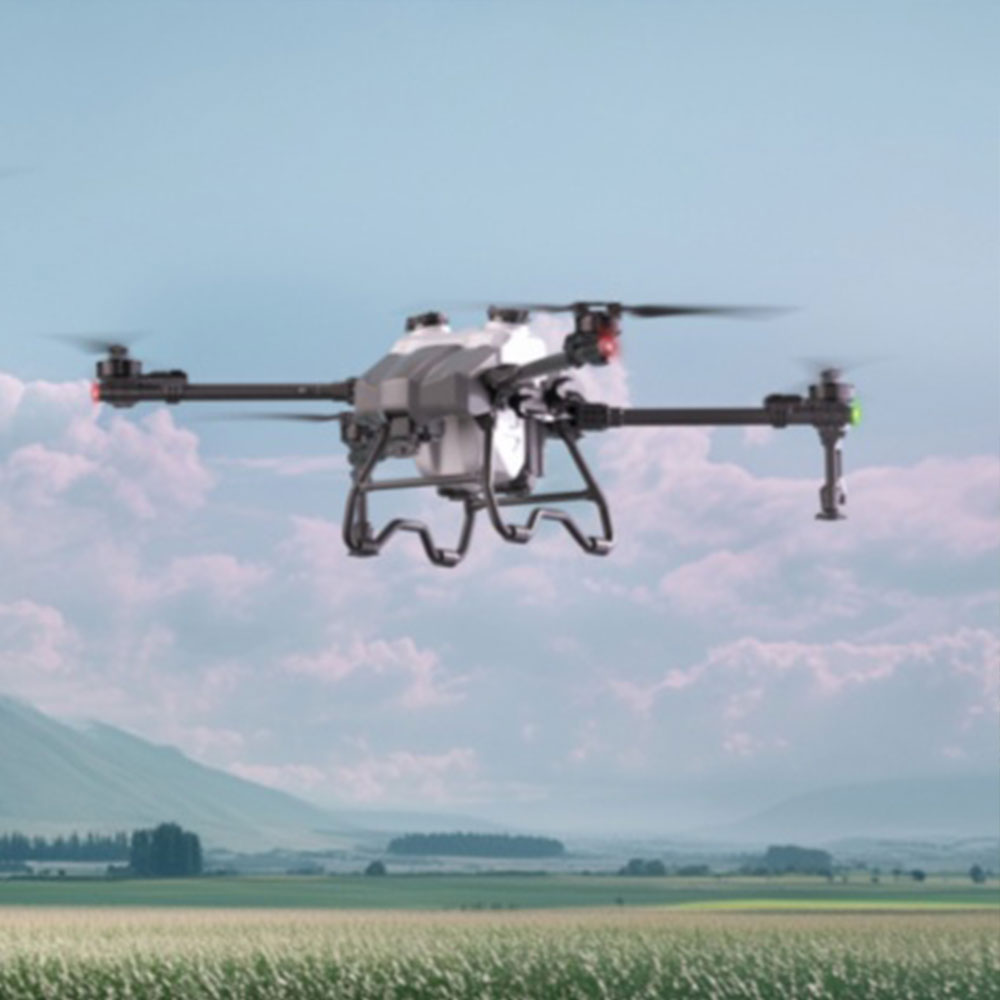

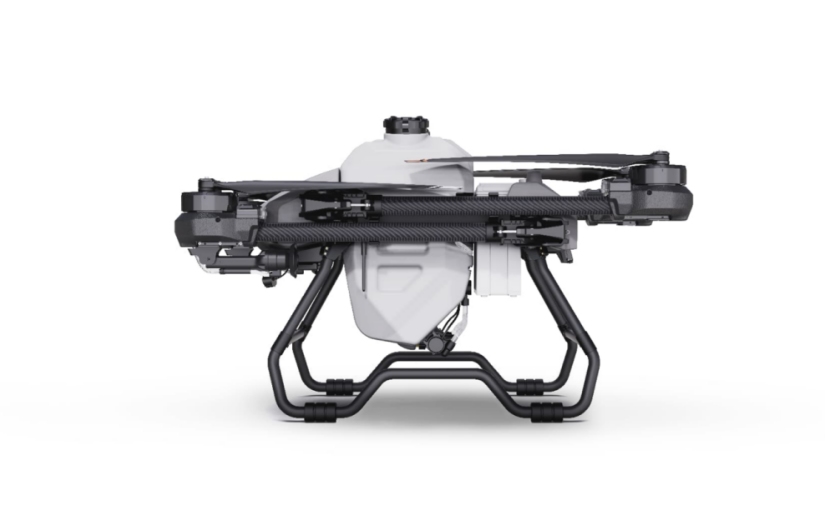

Agriculture Drone 50L

Heavy Payload Agricultural Platform

The AH50 is a 50L agricultural drone built for large farms and commercial agricultural operations. Its 50-liter tank capacity reduces refill frequency compared with smaller platforms, supporting longer continuous spraying runs during large-scale crop protection tasks. The airframe uses carbon fiber, nylon fiber, and aluminum alloy construction, with a total weight of 35 kg (battery excluded) and a 2300 mm wheelbase for stable flight under full payload.

Advanced Terrain Adaptation

The AH50 features terrain following radar that automatically adjusts flight altitude according to ground conditions. This system maintains consistent spraying height across hills, plantations, and uneven agricultural areas, helping to reduce drift and improve deposition uniformity. The operating temperature range of -10°C to 40°C covers most field seasons in temperate and subtropical growing regions.

Multi-Radar Safety System

Equipped with front and rear obstacle avoidance radar, the AH50 improves operational safety in complex environments. The sensing system detects obstacles such as trees, utility poles, and buildings during large-scale agricultural missions, supporting route adjustment and reducing collision risks. This multi-radar configuration is designed for commercial users who require dependable operation across varied field layouts.

High-Efficiency Farming Operations

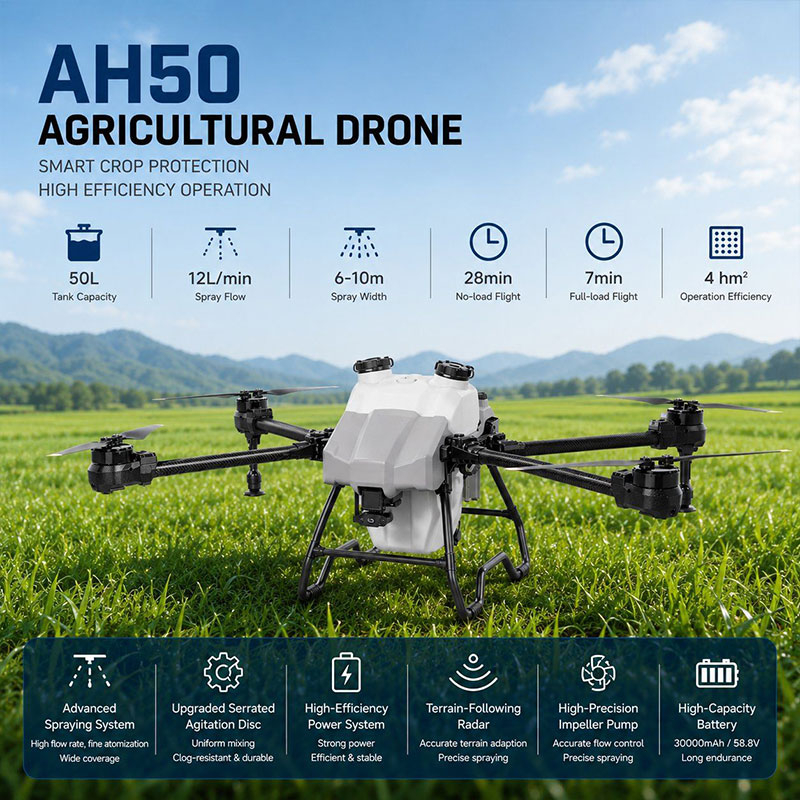

With a 50L payload and a 12 L/min spray flow rate, the AH50 delivers an effective spray width of 6 to 10 meters and an operation efficiency of 70 Mu per sortie (approximately 4.67 hectares). Dual centrifugal nozzle system supports atomized spraying for pesticide and liquid fertilizer application. For enterprise customers managing continuous large-area contracts, these specifications translate to fewer refills and more hectares covered per working day.
