Product Description

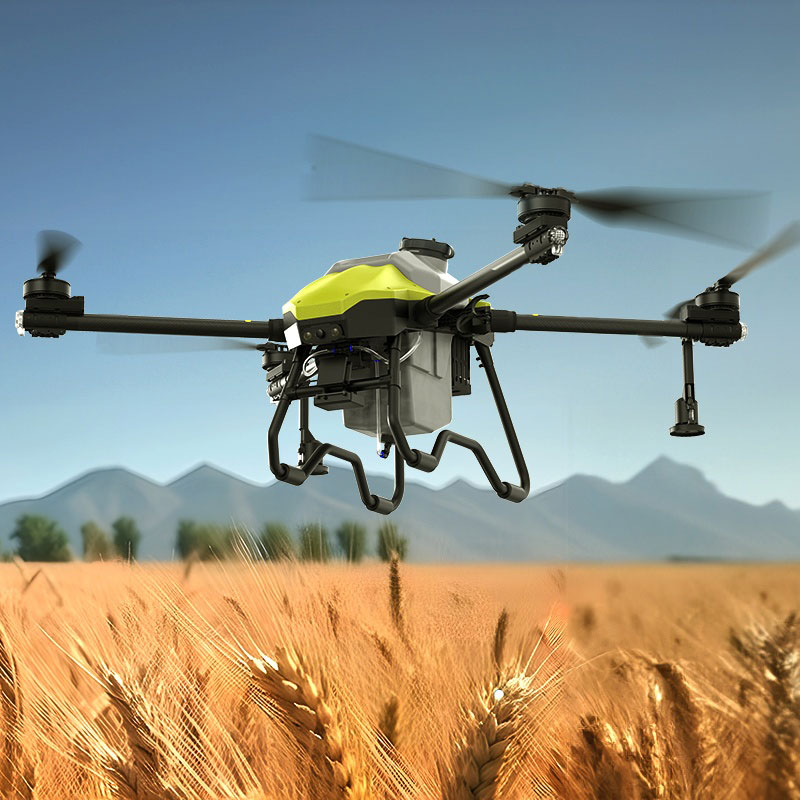

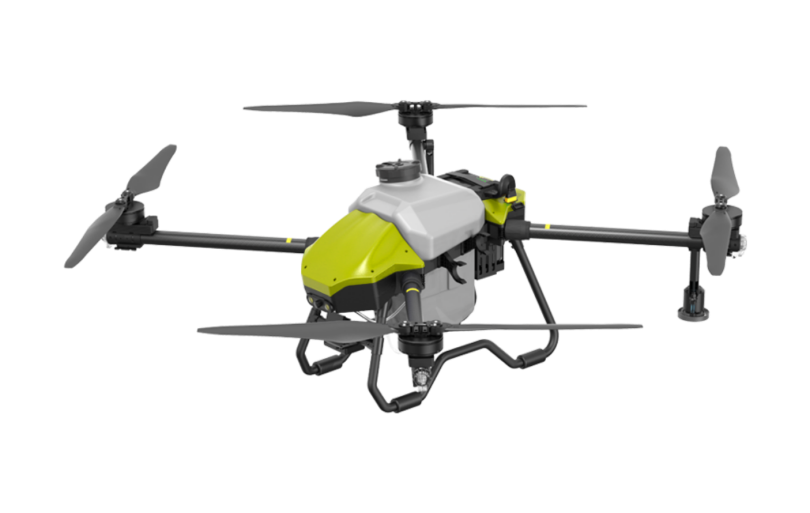

The AN20 Agricultural Drone is a crop protection UAV designed for commercial farming operations and agricultural service providers. With a 20L tank capacity and a 16L operational payload, the AN20 supports extended spraying missions between refills. The aircraft integrates intelligent route planning, a dual-nozzle spraying system, and a 14S 20000 mAh battery to deliver consistent application across field crops and orchards. Its carbon-fiber frame and folding design enable transport between sites while maintaining a maximum takeoff weight of 40 kg. The AN20 is positioned for commercial users managing medium-to-large fields who require higher per-sortie coverage without sacrificing flight stability.
The AN20 is deployed for liquid pesticide spraying, liquid fertilization, and crop protection across rice, wheat, corn, cotton, soybean, and orchard fields. Its aerial operation avoids soil compaction and crop trampling associated with ground machinery, making it suitable for fields with standing water, muddy terrain, or dense crop canopies. The aircraft also supports granule spreading for seeds and solid fertilizers, expanding its use across seeding and topdressing operations. For agricultural contractors managing multiple client farms, the folding frame and 18 kg empty weight support vehicle transport between sites with standard crew handling.
Product Advantage
The AN20 carries a 16L operational load within its 20L tank, reducing refill frequency compared with smaller-capacity models. The increased payload supports continuous spraying across larger fields, helping commercial users complete planned hectares within optimal pest control windows. The tank design accommodates both liquid pesticides and liquid fertilizers for multi-purpose crop protection schedules.
Equipped with both pressure and centrifugal nozzles, the AN20 adapts to different crop types and chemical formulations. The system delivers a spray flow of 4-8 L/min and an effective spray width of 3-5 m, with a maximum pump pressure of 0.8 MPa. Operators can select the nozzle configuration that matches the target crop canopy and required application rate, contributing to consistent droplet distribution across passes.
The AN20 supports automatic route planning and mission execution via its flight control system and RTK positioning. Operators map field boundaries through the remote controller or companion app, and the aircraft executes the planned flight path with terrain following and obstacle avoidance functions. One-key takeoff and landing reduce the manual piloting skill required for daily operation, allowing agricultural service teams to deploy the aircraft after structured training.
Powered by a 58.8V (14S) system and a 14S 20000 mAh battery, the AN20 maintains stable flight at full load. The aircraft achieves flight speeds of 3-8 m/s and a full-load flight time of 7-10 min, with a no-load flight time of 20-25 min. The quick-release battery design supports battery rotation to extend daily operating hours. The battery supports a charging cycle of 300-500 times, providing a measurable service life for enterprise customers planning multi-season deployment.
Technical Parameters
Technical Parameters | AN20 |
Developed dimension | 1140×1300×575 mm |
Folded size | 1010×610×575 mm |
Diagonal wheelbase | 1480mm |
Working voltage | 58.8V(14S) |
Weight | 18kg |
Load | 16L |
Flight speed | 3-8m/s |
Spray width | 3-5m |
Maximum takeoff weight | 40kg |
Sprinkler system | Pressure nozzle/Centrifugal nozzle |
Pump maximum pressure | 0.8 MPa |
Spray Flow | 4-8/min |
Flight time | No-load(20_25min) |
Operation efficiency | 8-10 min/mu |
Battery | 14S 20000 mAh |
Charging time | 15-30min |
Charging cycle | 300-500 times |
