Agriculture Drone 30L

Professional 30L Agricultural Platform

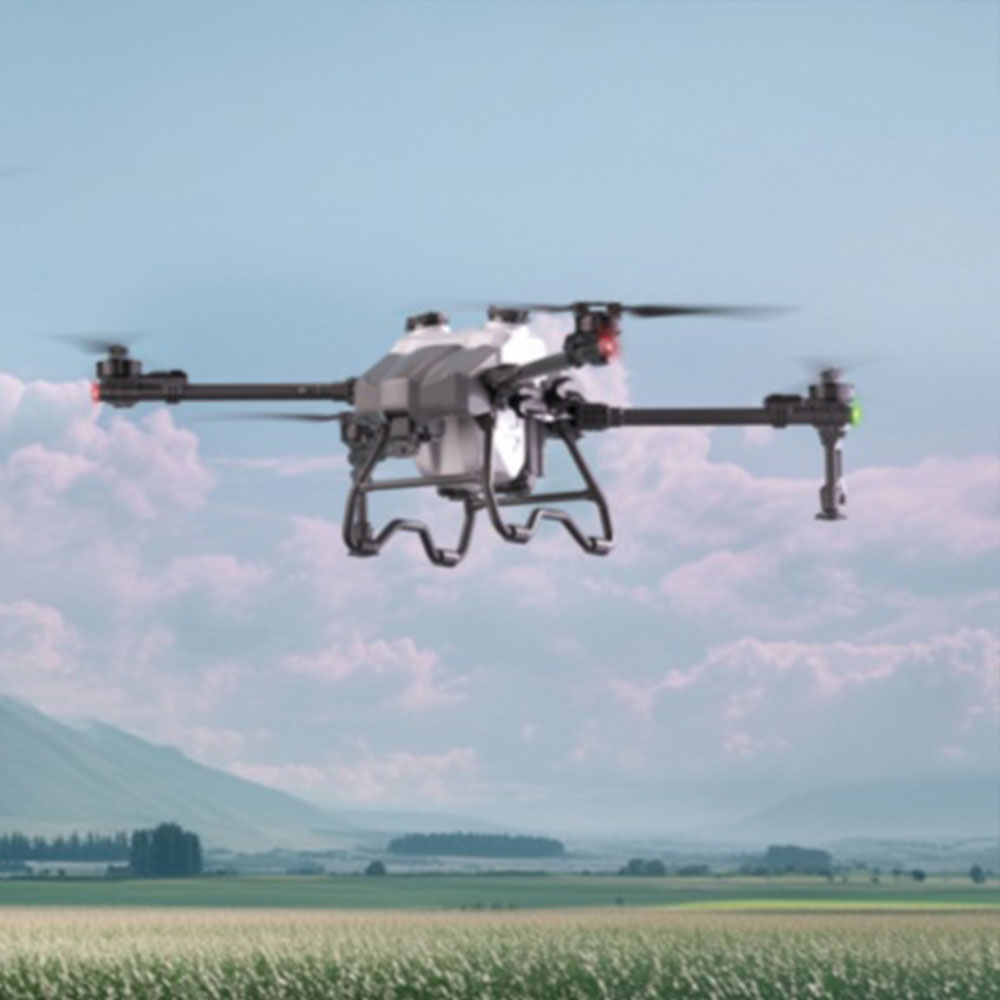

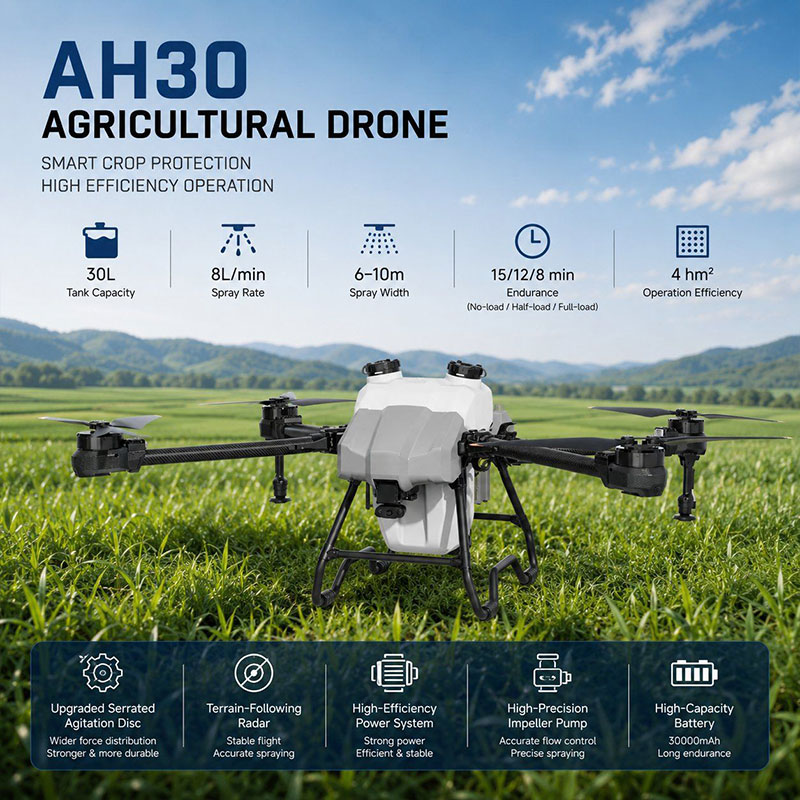

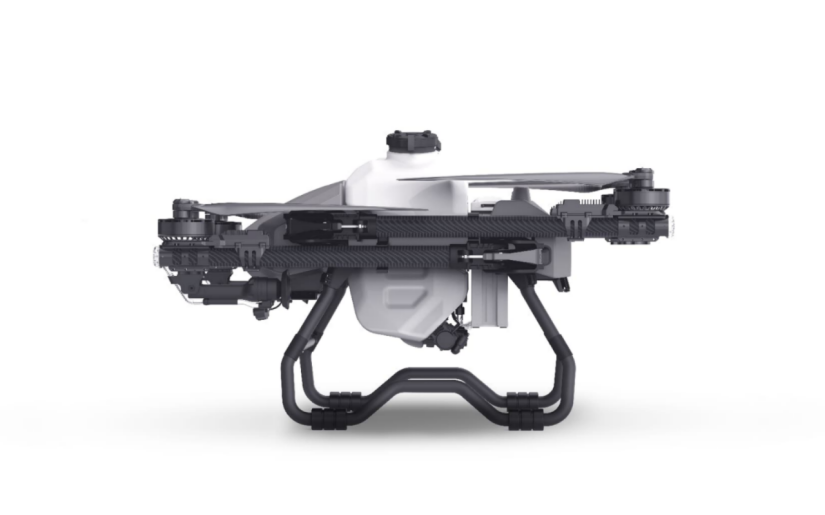

The AH30 is a 30L agricultural drone designed for professional farming operations and agricultural service providers. Its 30-liter payload improves working efficiency for large-area spraying missions compared with smaller 16L to 20L platforms. The airframe combines carbon fiber, nylon fiber, and aluminum alloy, with a total weight of 30 kg (battery excluded), a 2000 mm wheelbase, and folded dimensions of 603 × 1120 × 700 mm for transport between field sites.

Terrain Following Radar

Equipped with terrain following radar, the AH30 detects ground conditions and adjusts flight altitude in real time. This maintains consistent spraying height in hills, orchards, and uneven farmland, supporting more uniform droplet deposition across variable terrain. The platform operates within a temperature range of -10°C to 40°C, covering standard growing seasons in most agricultural regions.

Front and Rear Obstacle Avoidance

The AH30 integrates front and rear obstacle avoidance radar to improve flight safety in complex environments. The system detects obstacles including trees, buildings, utility poles, and other structures during agricultural operations. For business buyers working in mixed landscapes with scattered infrastructure, this dual-direction sensing supports more confident route execution and reduces equipment damage risks.

Multi-Scenario Agricultural Applications

Designed for diverse farming conditions, the AH30 is suitable for rice fields, orchards, vineyards, plantations, and mountainous areas. Its 5 to 8 meter effective spray width and 12 L/min flow rate deliver an operation efficiency of 60 Mu per sortie (approximately 4.0 hectares). The dual centrifugal nozzle system provides atomized application for pesticides and liquid fertilizers, while the 50L spreading hopper supports centrifugal disc spreading of seeds and solid fertilizers across a 3 to 10 meter width.
